Comelit Quadra Kit 8461X
1 button Quadra Kit with Maxi colour monitor - 2 wire
The Comelit Quadra kits come supplied to suit a 1 button – 1 family set up but can be quickly and easily changed into a 2 button/2 family or 4 button/4 family system. Simply change the button as required ( 2 or 4 – supplied in kit) and then purchase additional monitors to suit.
This 2 wire video kit has a surface mount entrance panel – sleek and sophisticated and the Comelit Icona hands free monitor
- The Quadra entrance panel has a colour camera with a wide field of vision and is equipped with white LED for illumination.
- The panel is DDA compliant, with icons and indicator LEDs that light up depending on call status.
- Manufactured from die-cast aluminium it has an impact protection rating of IK10.

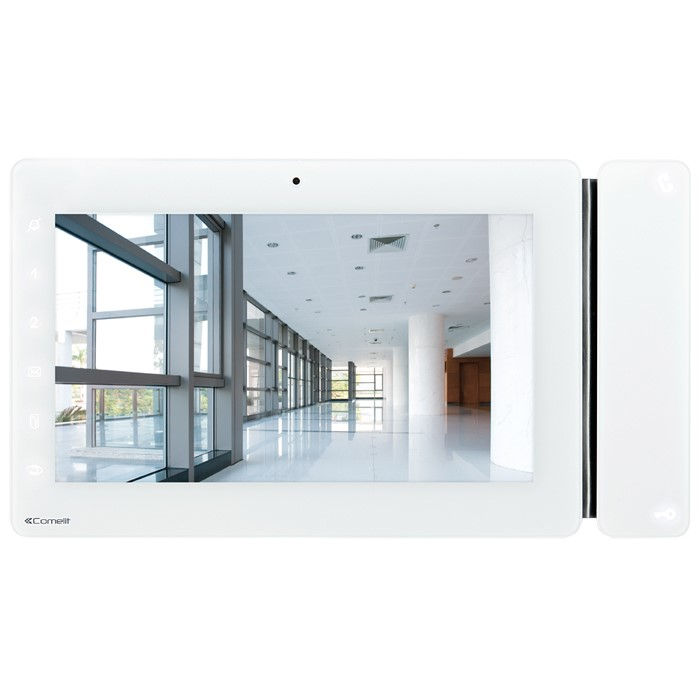

Product Code: 6801W. 7″ MAXI SERIES MONITOR. SBC SYSTEM
- Colour monitor for flush-mounting (on Art. 6817) or wall-mounting (on support Art. 6820) with 7″ 16:9 screen, hands-free full-duplex audio and touch sensitive controls.
- Allows brightness, contrast and audio volume control, plus adjustment of the volume of the ringtone, which can be customised with a choice of different melodies.
- Equipped as standard with control buttons for lock-release and audio enable/disable with relative indicator LEDs, plus 6 further buttons for self-ignition, privacy service and other programmable functions.
- Manages floor door calls and call repeat as standard.
- Complete with 2 x 8-position DIP-switches for user code programming and button programming.
- Equipped with riser distribution terminal Art 1214/2C.
- The monitor can only be used in 2-wire SimplebusTop Color systems.
223 x 124 x 25mm.
This kit includes
- 4893 Quadra entry panel x 1
- 6801W Maxi monitor x 1
- 6817 flush box x 1
- 6820 wall bracket x 1
- 1214/2C Simplebus 2 and Simplebus Colour connection terminal x 1
- 1216 Simplebus/ Kit system termination terminal x 1
- 1209 Power supply x 1
