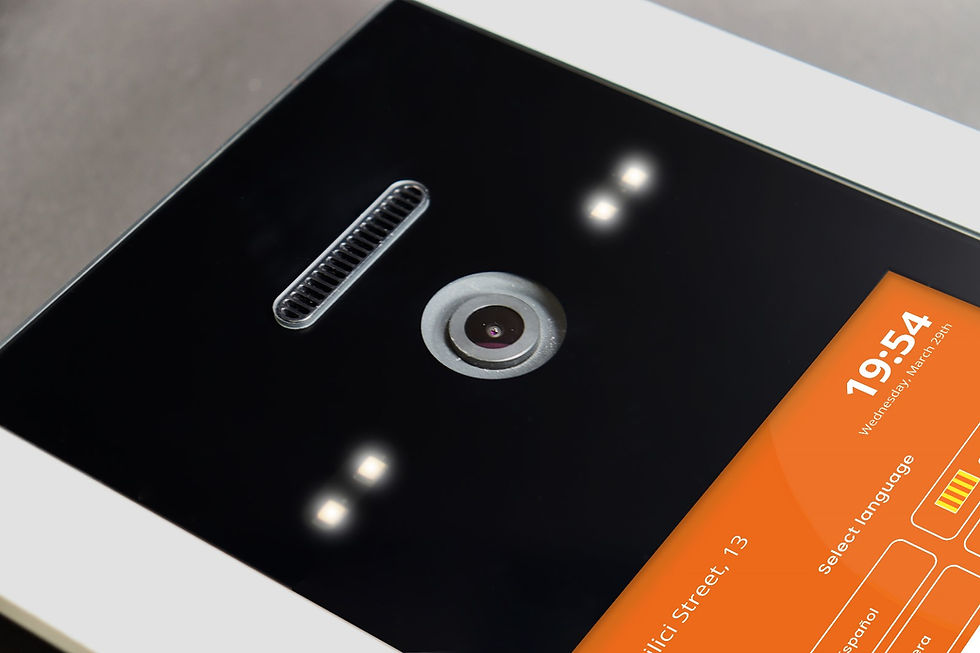

Golmar 6507/G2+ Touch panel
Touch panel with G2+ technology of two non-polarised wires.
Available in 3 different finishes and with 3 proximty options
Additional information
- Vandal resistant (IK-10) and weatherproof (IP-65) panel made of 6mm thickness aluminium.
- 2MPx HD 130º wide angle camera with white self-starting LEDs for night vision.
- Customisable 7" TFT LCD colour screen with 600x1024px resolution that provide three calling methods: by entering the apartment number, searching in the contact list, or buttons.
- Modular graphic interface that allows to modify the main screen shortcuts.
- Inductive loop antenna for the heard impairment people.
- Presence sensor and ambient light sensor.
- Acoustic confirmation tones when display is pressed.
- RFID proximity reader for up to 2000 cards. 125KHZ, 13,56 MHz cards and 2SAFE options available.
- RJ-45 connector for programming.
Additional information
- Proximity options with increasing degrees of security available. Select version required.
- CCTV input for an analogic camera.
- Possibility of displaying the door panel images in its own screen and customize the welcome screen image.
- Basic programming via the menu in the screen and advanced settings through the web client.
- Remote programming through the "Sixty5 cloud" website.
- Anti-sabotage alarm tamper.
- 12 V dc input for local power.
- 2 relay contacts and 2 exit push button inputs.
- Requires a CE-6502 SE / CE-6502 TE embedding box
Proximity options + Dimensions and Downloads
6507/G2+ - 6507/G2+ Black - 6507/G2+ Inox:.
These panels include Wiegand 26 (input/output) as standard. RFID proximity reader for up to 2000 cards. 13,56 MHz Mifare cards are accepted.
........................
6507/G2+/125KHZ - 6507/G2+/125KHZ Black - 6507/G2+/125KHZ Inox:
These panels include RFID proximity reader for up to 2000 cards. 125 KHz cards are accepted
.........................
6507/G2+/2SAFE - 6507/G2+/2SAFE Black - 6507/G2+/2SAFE Inox:
These panels include 2SAFE technology RFID proximity reader. 13,56 MHz Mifare+ cards are accepted.
- *In versions with a 2SAFE antenna, proximity must be managed using iP-Opener 2SAFE or EASYGATE controllers
...............................
Dimensions and downloads
Dimensions: 155(W) x 317(H) x 50(D)mm.
